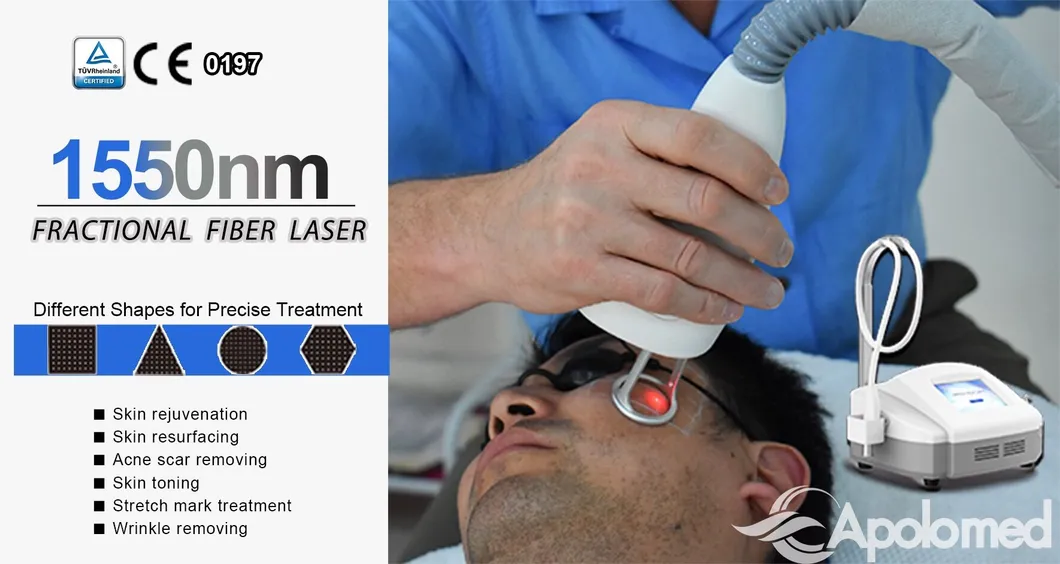

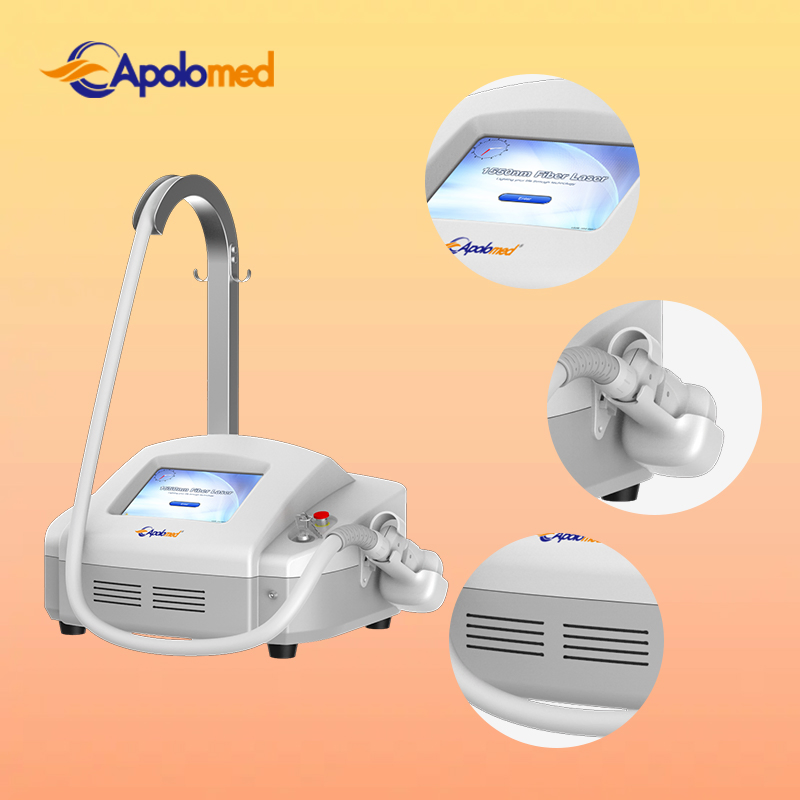

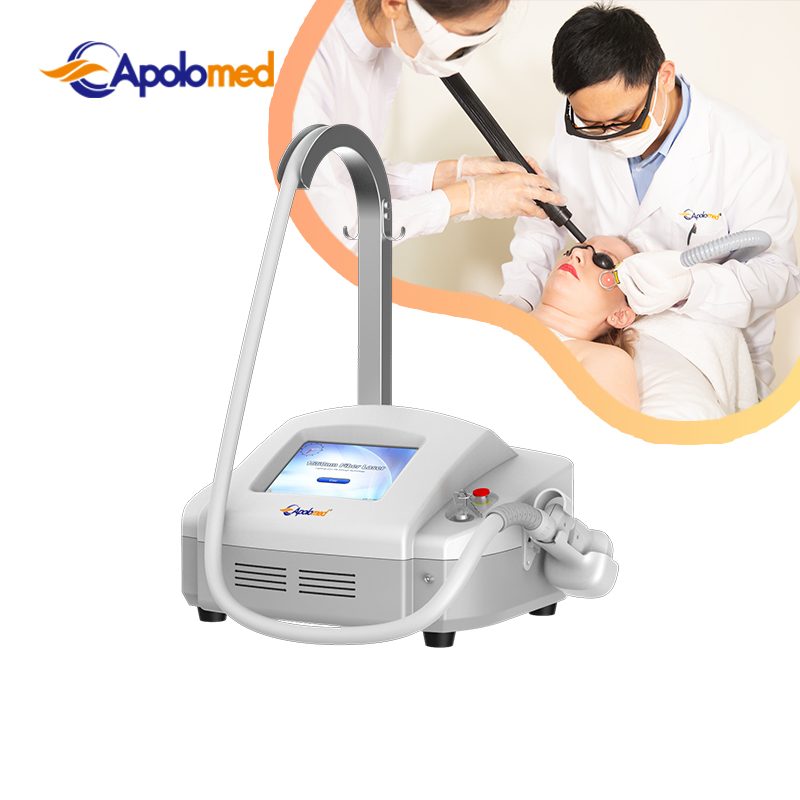

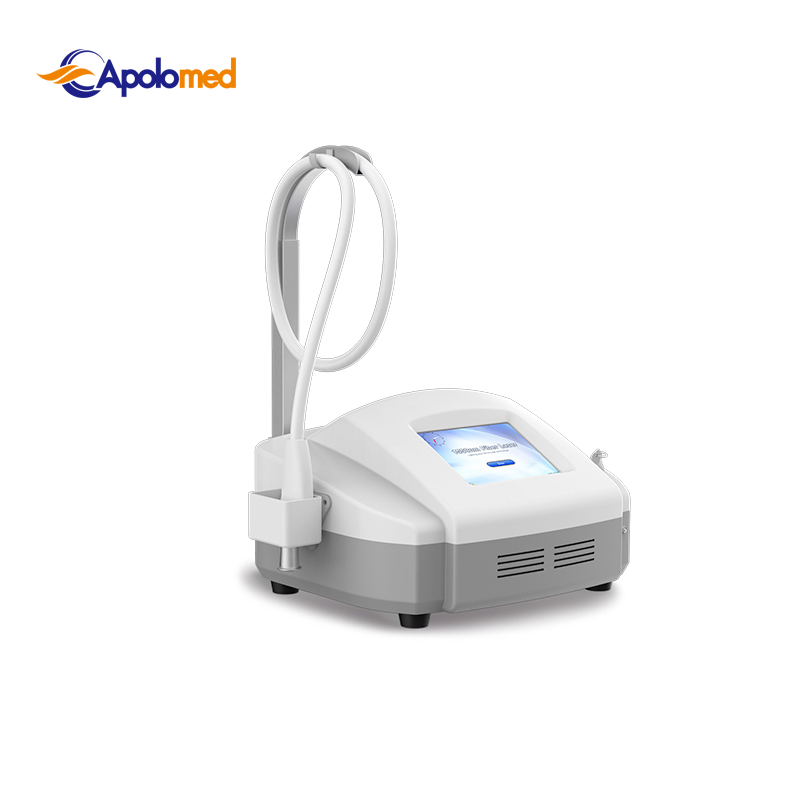

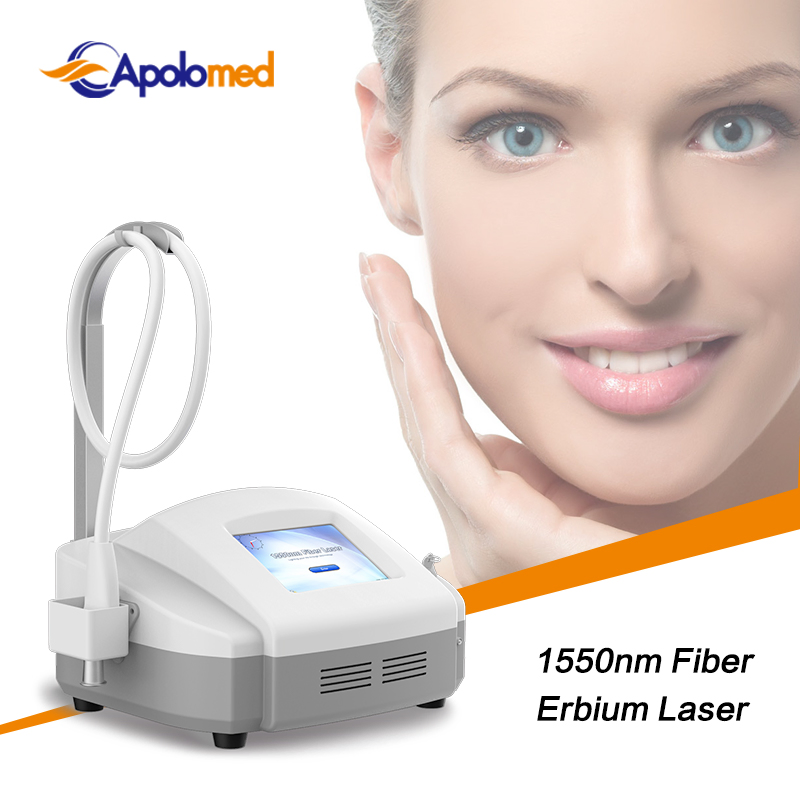

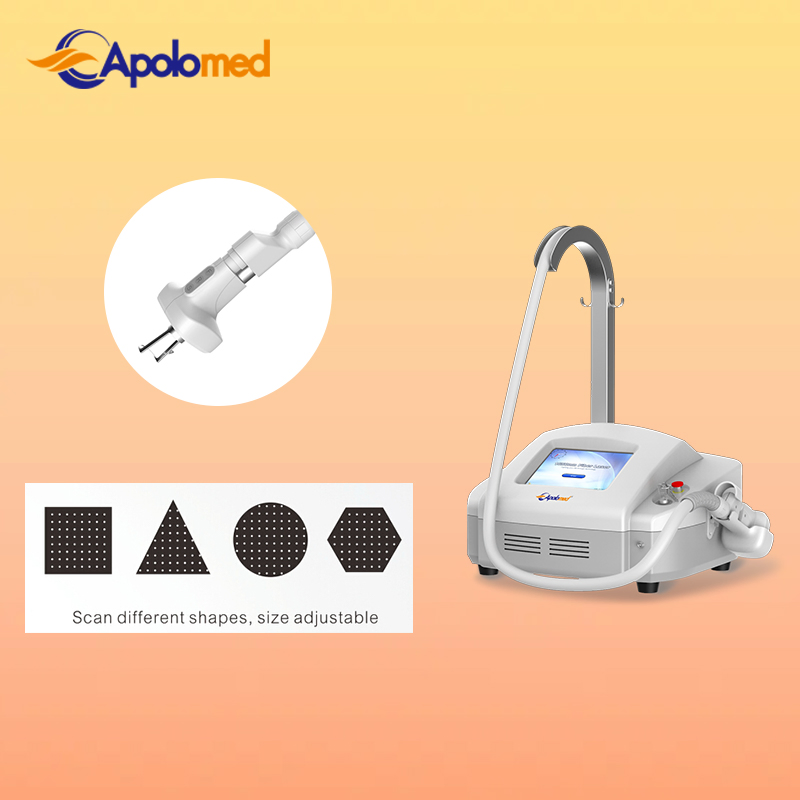

إزالة ندبات حب الشباب بأمان بالليزر 1550nm جهاز ليزر إربيوم جهاز فركشنال بتصميم قفل لإعادة تسطح البشرة

التخصيص: متاح
نوع: ليزر ألياف ضوئية 1550 نانومتر
نظرية: ليزر ألياف ضوئية 1550 نانومتر

وصف المنتج

ملخص المعلومات الأساسية
نموذج رقم
HS-230
تطبيق
للأغراض التجارية
المحمول
المحمول
شهادة
ce0197، iso13485، FDA 510k221770
الطول الموجي
1550 نانومتر
متوسط الليزر
ألياف إربوم
طاقة الليزر
15W
إخراج الليزر
1~120 ميجابايت/نقطة
عرض النبض
1~20 مللي ثانية/نقطة
الكثافة
25~3025 PPA/سم2 (12 مستوى)
منطقة المسح الضوئي
20*20 مم
وضع التشغيل
صفيف، عشوائي
واجهة التشغيل
شاشة ملونة تعمل باللمس مقاس 9,7 بوصة
نظام التبريد
نظام تبريد الهواء المتقدم
مصدر الطاقة
تيار متردد 100-240 فولت تقريبًا، 50/60 هرتز
حزمة النقل
صندوق من الألومنيوم
تخصيص
52*44*32 سم (الطول*العرض*الارتفاع)
الأصل
الصين
رمز النظام المنسق
8543709990
القدرة الإنتاجية
1500 مجموعة
Product Description
Safe Acne Scar Removal Laser 1550nm Erbium Laser Machine Fractional Machine with Interlock Design for Skin Resurfacing
إزالة ندبات حب الشباب بأمان بالليزر 1550nm جهاز ليزر إربيوم جهاز فركشنال بتصميم قفل لإعادة تسطح البشرة

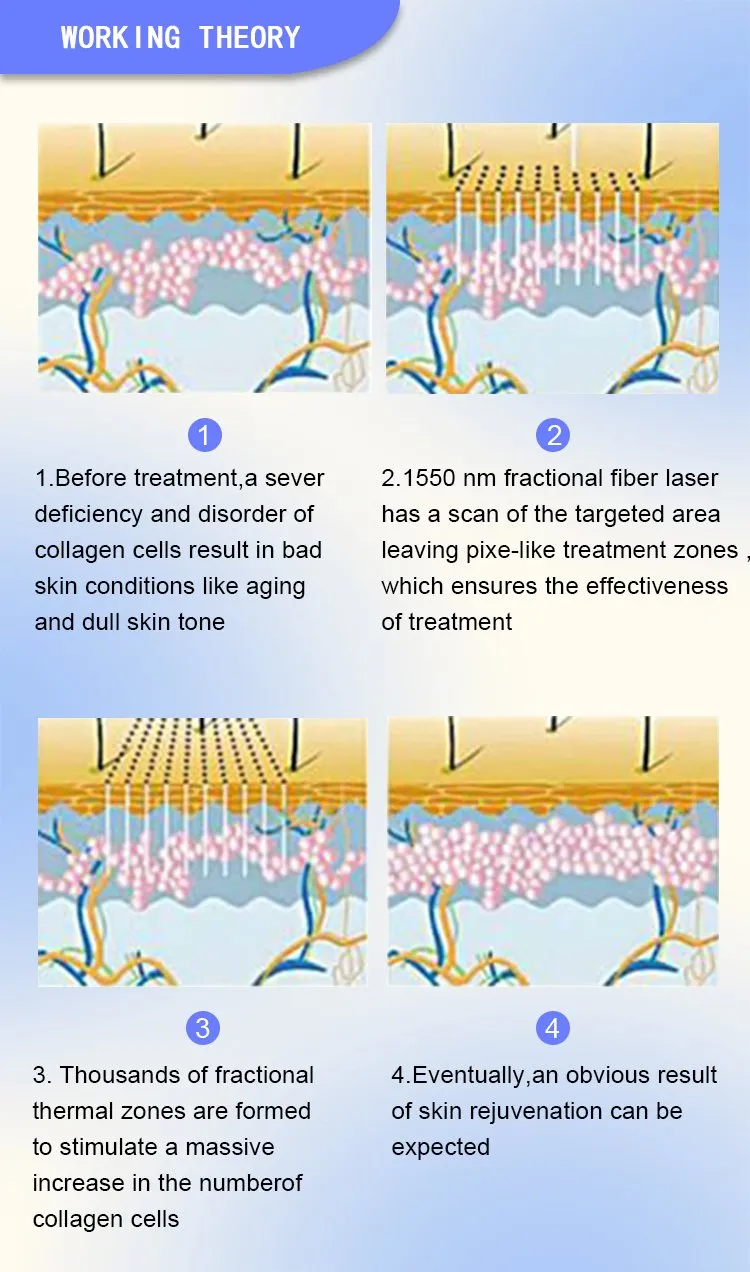

Principle of 1550nm skin rejuvenation fiber laser

1550nm Erbium fiber laser is splitted into numbers of microscopic beams to the skin, known as microscopic thermal zone. The fractionaized beams not only trigger the healing process of the skin, but also keep the tissues around the coagulation zone. The treatment removes old epidermal pigmented cells and penetrates deep into the dermis, remolding collagen and get the skin regeneration. Dermis fiber thickens, micro wound heals quickly, skin restores smooth after several treatments. The heat of laser only passes deeply through the fractional damaged area. This allows the skin to heal much faster than if the whole area was treated. These driver the better clinical results and make less downtime and side effect.

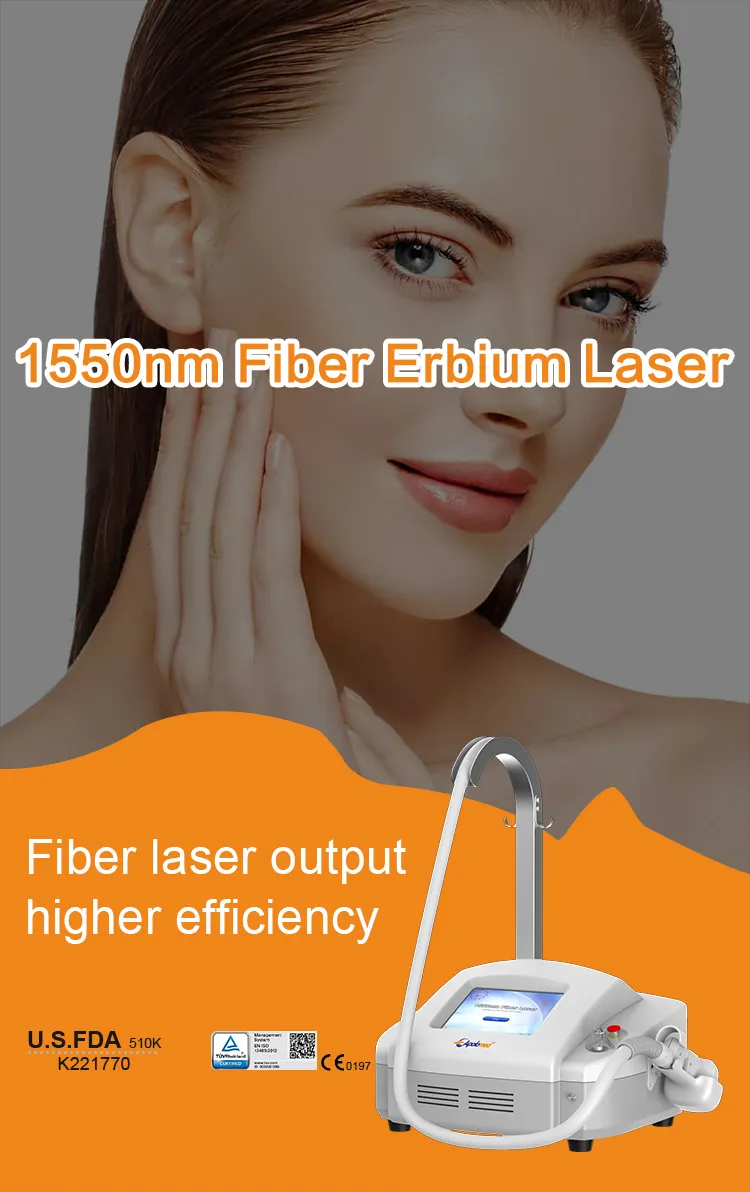

Skin Resurfacing Details 1

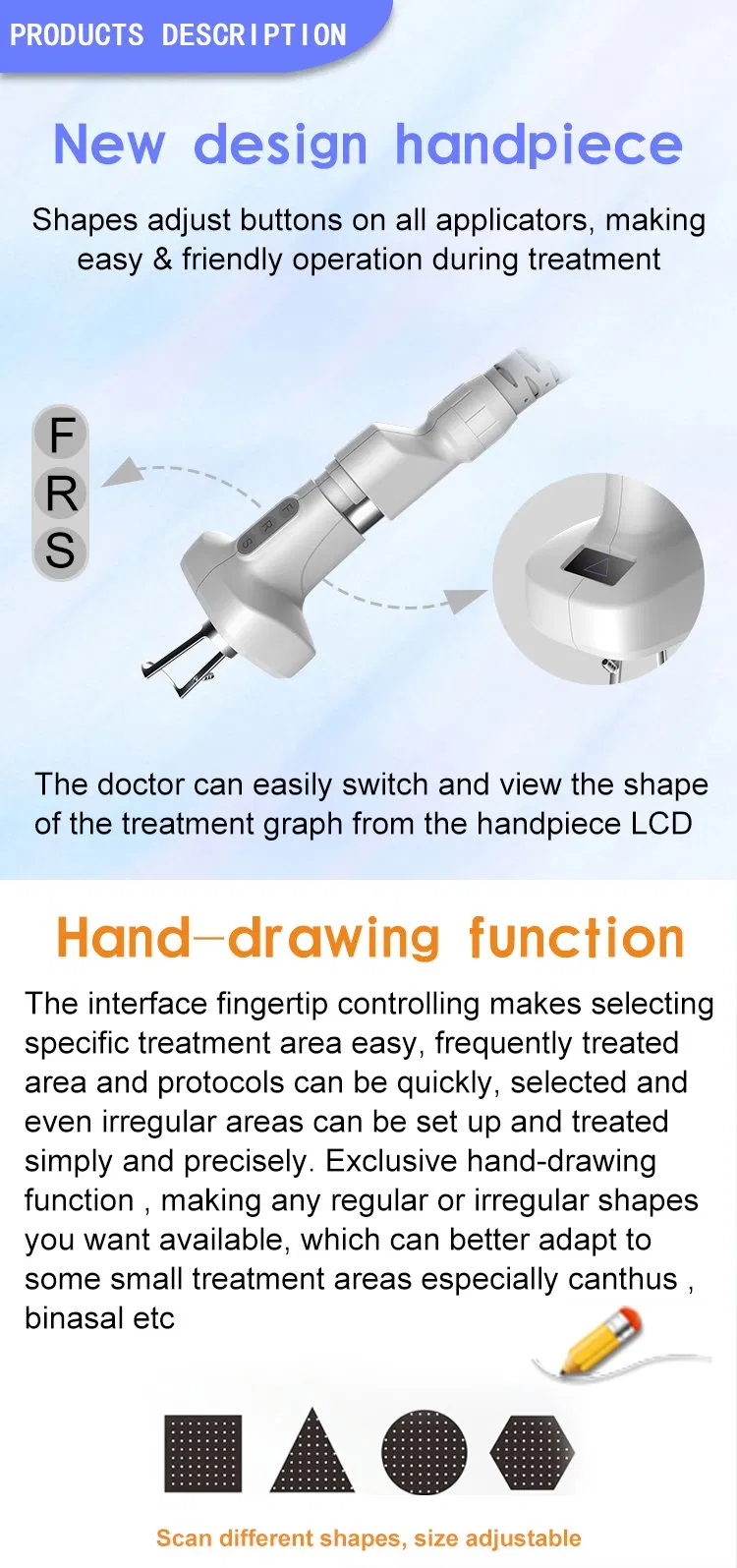

Skin Resurfacing Details 2
Skin Resurfacing Details 3

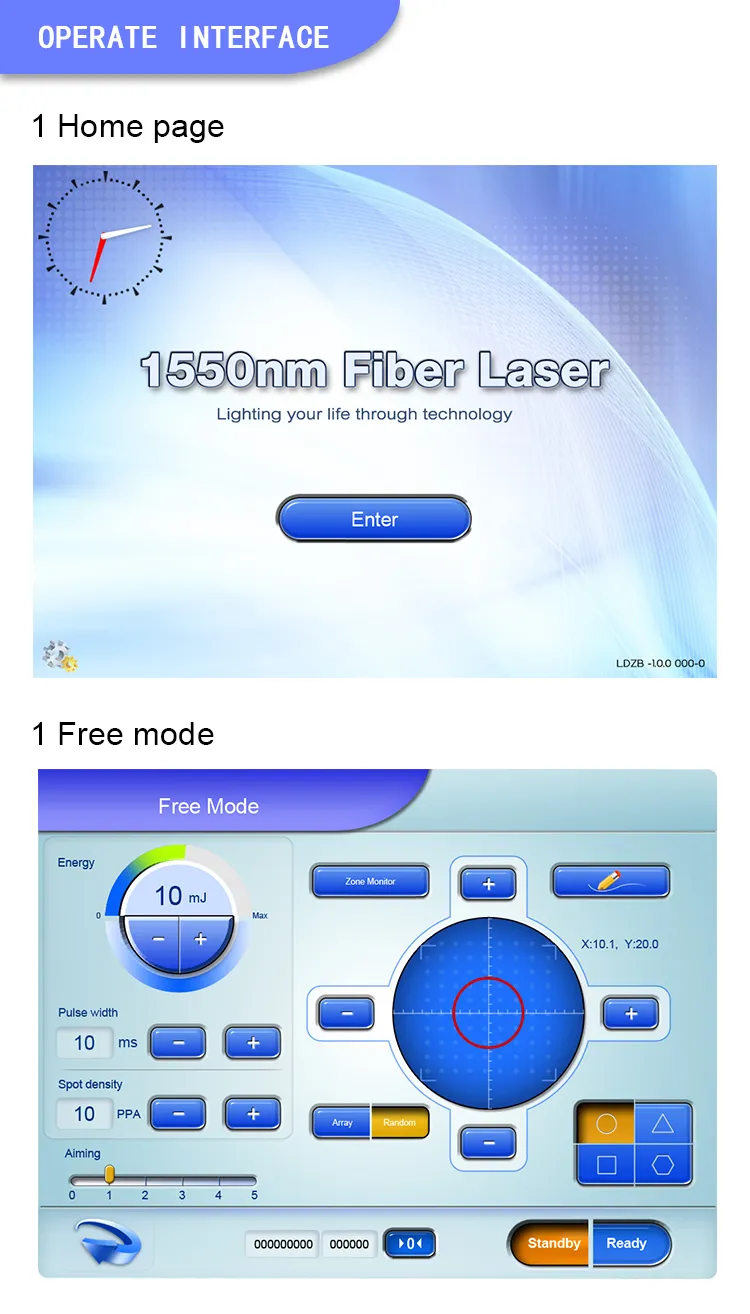

Skin Resurfacing Details 4

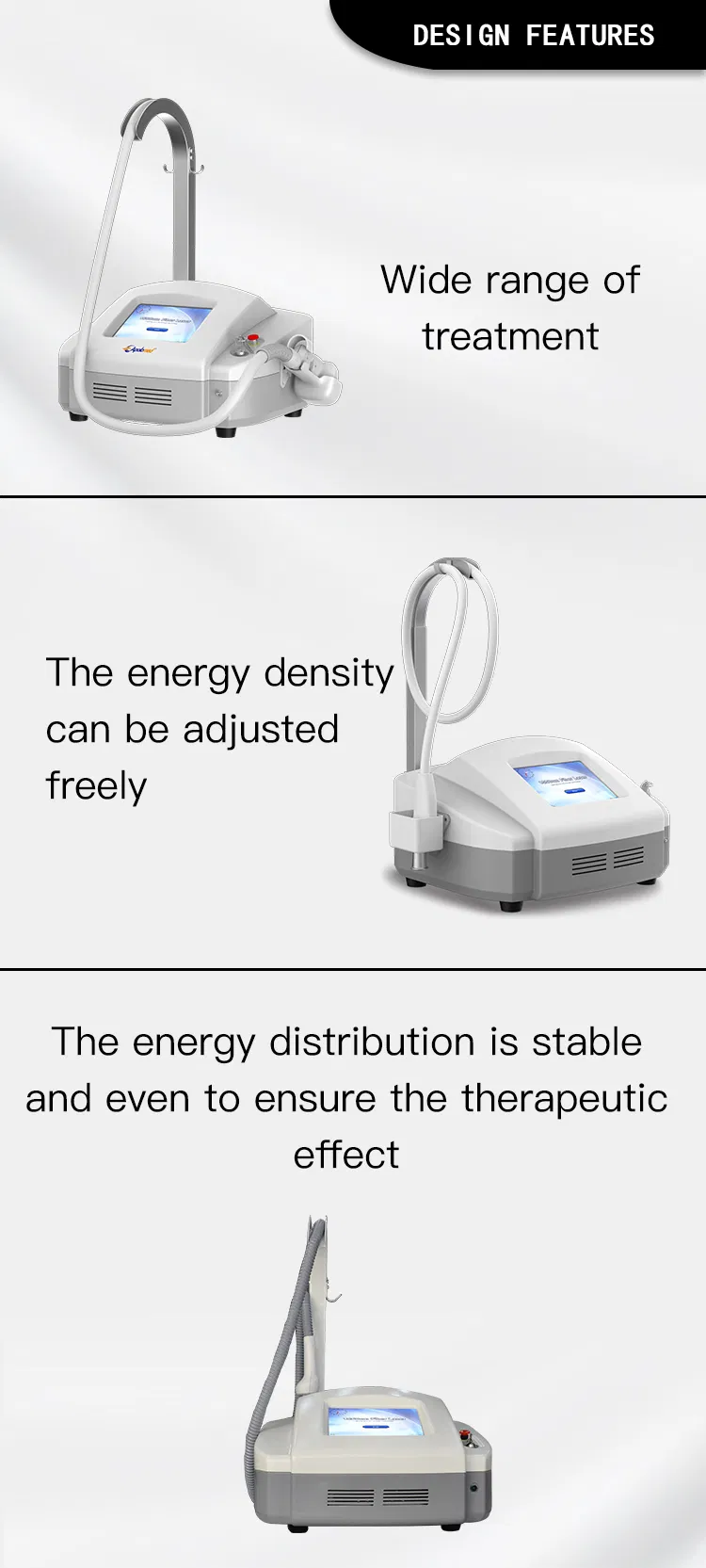

Skin Resurfacing Details 5

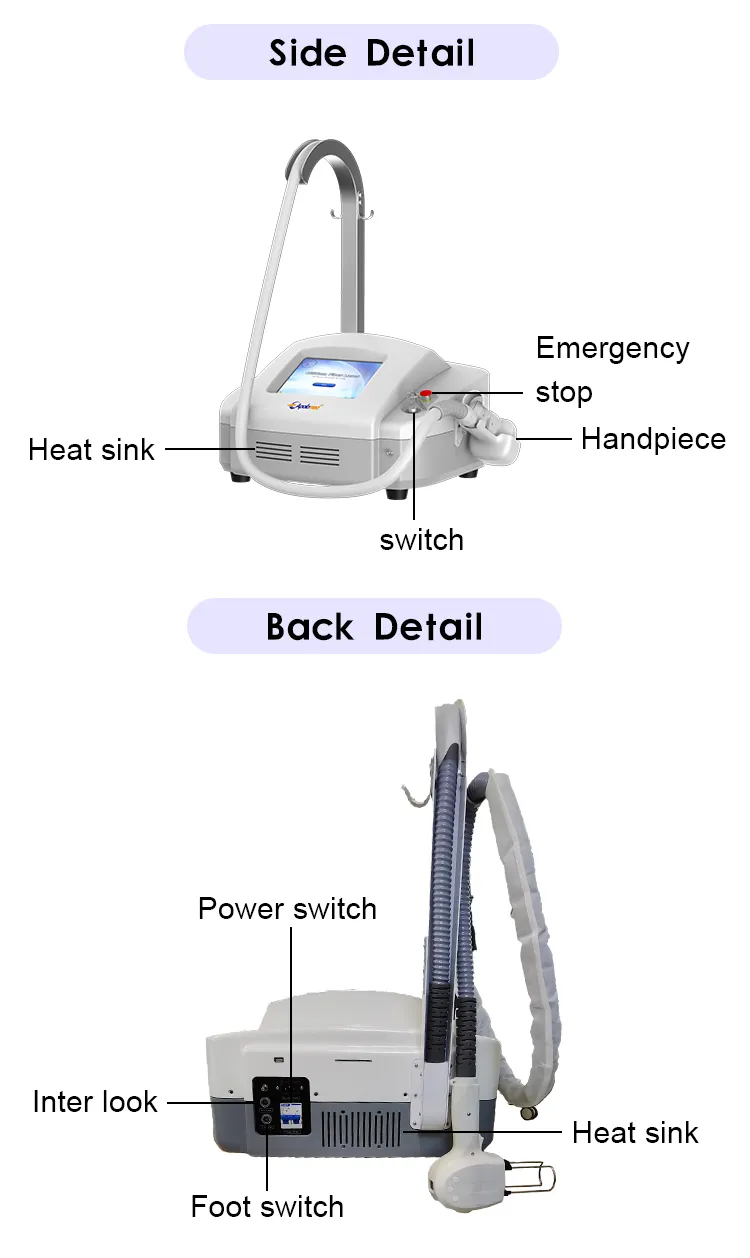

Skin Resurfacing Details 6

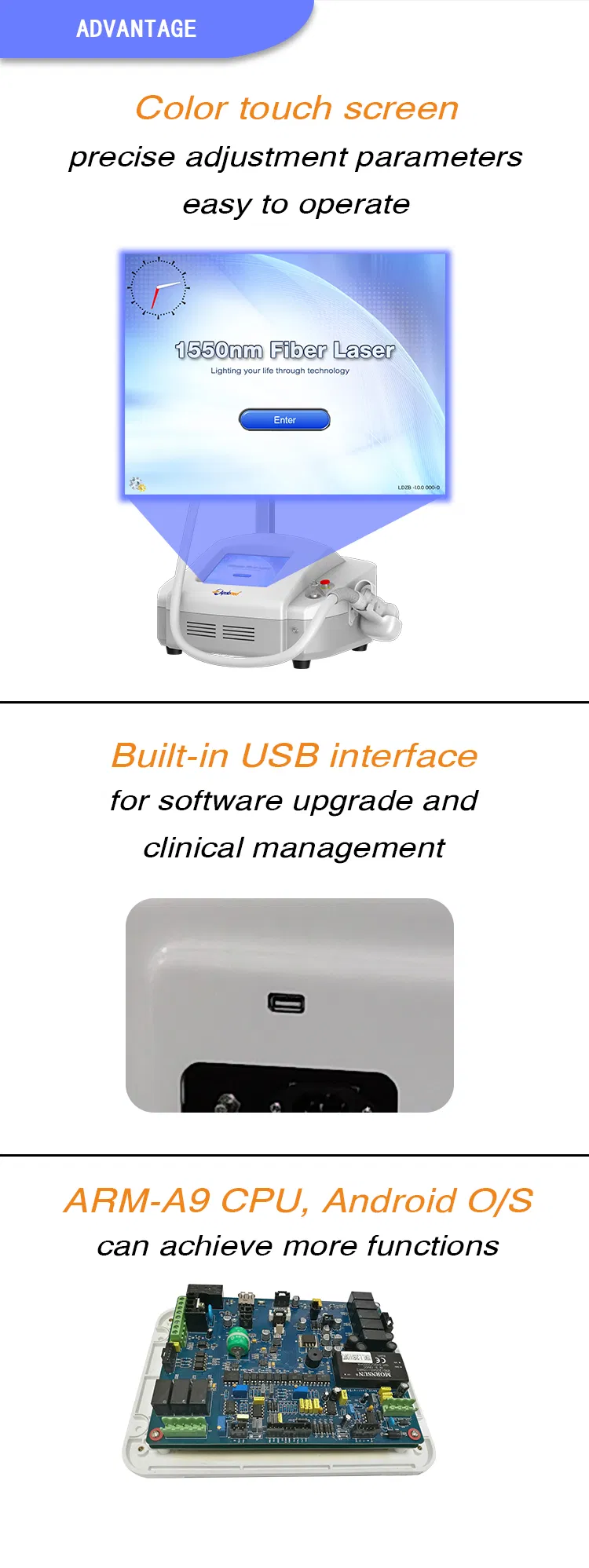

Skin Resurfacing Details 7
Skin Resurfacing Details 8
Skin Resurfacing Details 9
Application of 1550nm skin rejuvenation fiber laser
  • Skin rejuvenation
  • Skin toning
  • Wrinkle removal
  • Acne scar removal
  • Skin resurfacing
  • Stretch mark removal
Fiber laser treatment with free set scan shape
Fiber laser treatment with free set scan shape
Specifications

Technical specifications of 1550nm skin rejuvenation fiber laser

Parameter Specification Details
Model HS-230
Wavelength 1550nm Erbium fiber laser
Laser power 15W
Laser output 1~120 mJ/dot
Density 25~3025 PPA/cm2 (12level)
Scan area 20x20mm
Pulse width 0.06~8ms/dot
Operate mode Array, Random
Operate interface 9.7" true color touch screen
Cooling System Advanced air cooling system
Power supply AC100V or 230V, 50/60HZ
Dimension 52x44x32cm (L*W*H)
Weight 30Kg
Advantages
  • Treat a wider range of indications with only one machine
  • Make select specific treatment area easily; irregular area can be set up
  • Compact handpiece offer user comfort and easy treatments
  • Density is fully adjustable
  • Just touch screen to easily change the treatment for optimal results
  • Good and stable energy give you good result
  • RF ID/ IC card management control design for providing different business operations models (i.e.: member card, Rental...)
  • Apply Android operation system, is capable for more functions of saving customer database, developing applications and customize interface. Different scan shapes and free-drawing shapes supported
Company Profile

We are a leading designer and manufacturer of Intense Pulsed Light(IPL), Various technologies Laser (Pico Nd:YAG, CO2...), Platform Laser, HIFU, PDT LED, Body Slimming technologies for using in medical and aesthetic industries. Since inception in 2001, our team has designed, developed and manufactured over 40 high standard devices to meet skin and beauty requirements all designed in-house with our own patented technologies.

3 largest systems developed:

a) Fractional Laser 1064nm long-pulse laser.
b) Er Glass 1540nm laser;
c) Er Yag 2940nm laser.

A Commitment To Excellence
With our comprehensive family of products, technology and support services, we have been helping physicians and aesthetic business owners capitalize on the unique and growing opportunities in the aesthetic laser market since 2001. Over the years, we've consistently focused on delivering tangible benefits to both providers and their clients. Specifically, we help providers enhance their practice with exceptional aesthetic laser and light-based solutions that can improve the health, well-being and quality of life of their clients.

A Global Presence
Our products are used by professionals in the aesthetic and medical markets on a worldwide basis. We currently support customers in over 40 countries through global distributors, including Eastern Europe, Middle East, Oceania, South and North America, and Asia.

Culture
We always insist on the principle of "Focus on the product value, grow by high quality, keep improving and innovation". "Technology creates charm, and leads fashion trend" is our main aim.

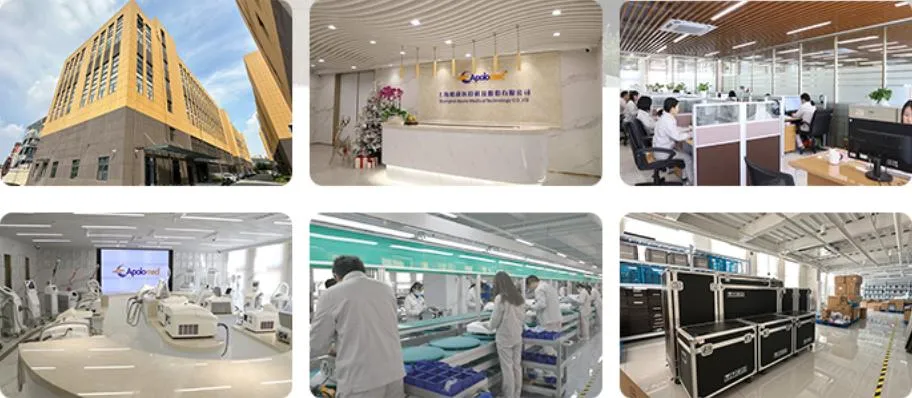

Global Presence and Culture
Patent Certificate
OEM & ODM Services
Medical & Aesthetic Devices Designer and Manufacturer

We manufacture equipment strictly in accordance with ISO 13485 and all our products comply with Medical CE certificates under the Council Directive 93/42/EEC (MDD) and regulations (EU) 2017/745 (MDR). Our high end products have obtained certificates of US 510K, Australia TGA, and Brazil Anvisa. All the above certificates warrant our Channel Partners to stay relevant in the Global Medical & Aesthetic industries.

Certificates and Patents
Factory & Exhibition

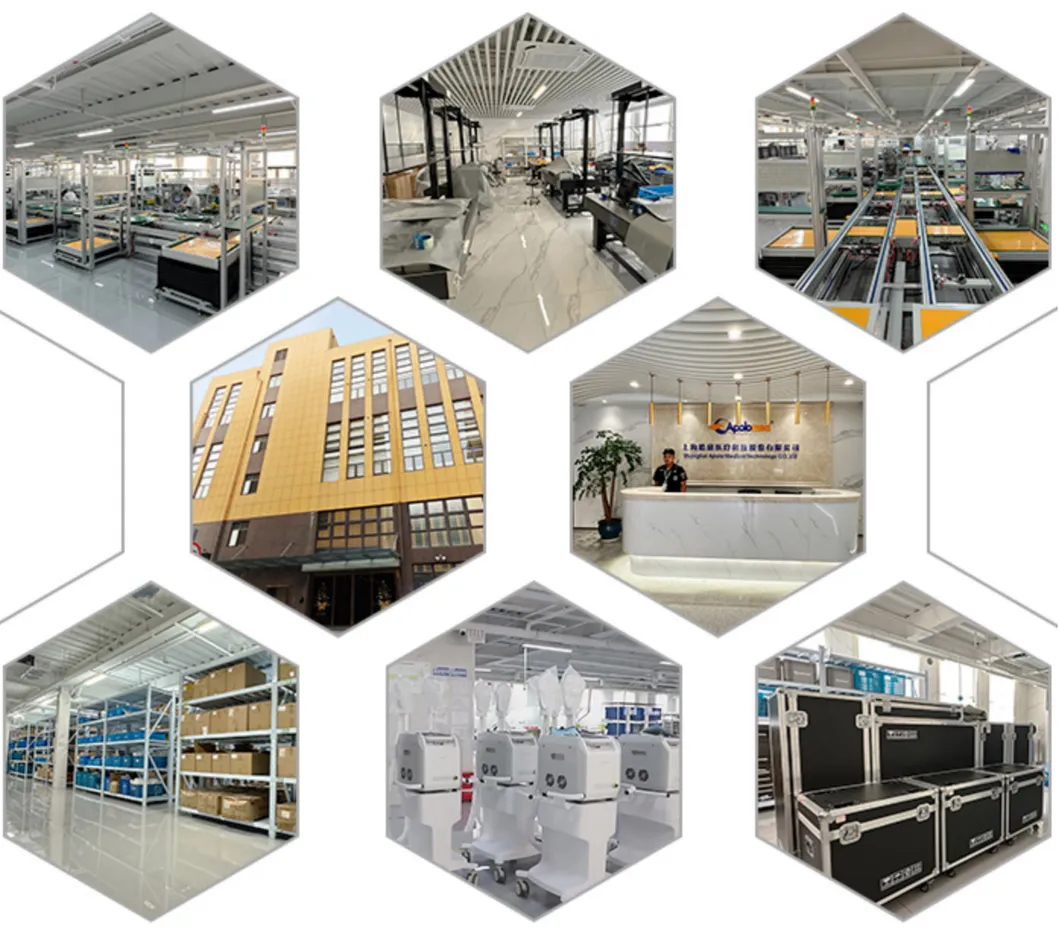

Factory Environment
Global Exhibition
Shipping
Safe and Fast Shipping methods
الأسئلة الشائعة (FAQ)
من نحن؟ (Who we are)
تأسس مصنعنا في الصين منذ عام 2001، ونقوم بتوزيع منتجاتنا إلى مختلف أنحاء العالم: أمريكا الجنوبية (30%)، شرق آسيا (30%)، أمريكا الشمالية (20%)، غرب أوروبا (10%)، شرق أوروبا (5%)، وجنوب شرق آسيا (5%).
كيف نضمن جودة المنتجات؟ (How can we guarantee quality)
نضمن الجودة من خلال فحص واختبار عينات ما قبل الإنتاج دائمًا قبل البدء بالإنتاج الضخم؛ بالإضافة إلى إجراء فحص نهائي دقيق وكامل لكافة الأجهزة قبل عملية الشحن مباشرة.
ما الذي يمكنكم شراؤه منا؟ (What can you buy from us)
يمكنكم الحصول على مجموعة واسعة من أجهزة التجميل المتقدمة بما في ذلك: أجهزة الليزر IPL، أجهزة شد الوجه HIFU، أجهزة تخسيس ونحت الجسم، وأنظمة العلاج الضوئي PDT LED.
لماذا يجب الشراء منا وليس من موردين آخرين؟ (Why buy from us)
نتميز بخبرة تصنيعية وتصديرية طويلة تمتد لأكثر من 20 عامًا. نقوم بتطوير البرمجيات الخاصة بنا وتصميم الهياكل الخارجية للأجهزة داخليًا، بالإضافة إلى توفير نظام متكامل لمراقبة الجودة، ودعم فني وتدريب مجاني وفعال.
ما هي شروط الدفع والتسليم المقبولة لدينا؟ (Accepted services)
شروط التسليم المقبولة: FOB, CFR, CIF, EXW والتسليم السريع. العملة المقبولة للدفع هي الدولار الأمريكي (USD). طرق الدفع المتاحة تشمل التحويل البنكي T/T، خطاب الاعتماد L/C، ويسترن يونيون، وموني جرام.
ما هي اللغات التي يدعمها فريق الخدمة لدينا؟ (Languages spoken)
فريق الدعم لدينا يتحدث العديد من اللغات لخدمة العملاء حول العالم، ومنها: العربية، الإنجليزية، الصينية، الإسبانية، اليابانية، البرتغالية، الألمانية، الفرنسية، الروسية، الكورية، والإيطالية.
